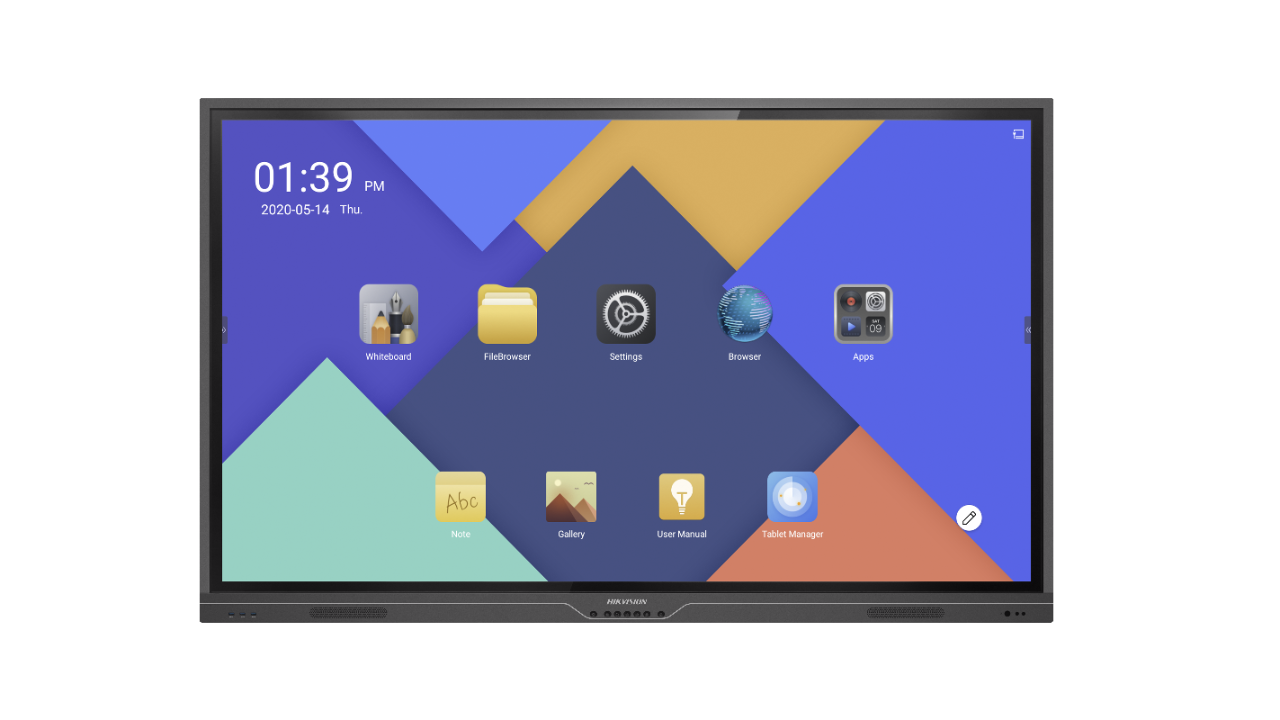

Màn hình tương tác giáo dục Hikvision 86” DS-D5186TS/P

Display

• Screen Size85.6 inch
• Active Display Area1913.0 mm × 1084.0 mm
• BacklightLED
• Pixel Pitch0.372 mm × 0.372 mm
• Resolution3840 × 2160
• Brightness500 cd/m²
• Viewing Angle178°/178°
• Color Depth1.07 bit
• Contrast Ratio6000:1
• Response Time3 ms
• Refresh Rate60 Hz
• Color Gamut92%
• Haze1%

Built-In System

• Operation SystemAndroid 8.0
• ProcessorCortex A73 2 Core + A53 2 Core 1.4 G/1.1 GHz
• Memory3 GB, DDR3 1 GB, DDR4 2 GB
• Built-In Storage32 GB

Touch

• TypeInfrared touch screen
• Glasstempered glass, anti-glare, anti-collision and anti-scratch design
• Touch Point20 point multi-touch at most
• Touch Response Time≤ 8 ms
• Touch Precision2 mm

Interface

• Video & Audio InputHDMI × 2, VGA × 1, YPbPr × 1, AV IN × 1, LINE IN × 2
• Video & Audio OutputLINE OUT × 1, SPDIF OUT × 1
• Network InterfaceLAN × 2
• Data Transmission InterfaceUSB (PC + Android) × 3 on the front panel, Android-USB × 2 on the side panel
• Control InterfaceTOUCH-USB × 1, RS232 × 1

Power

• Power Supply100 to 240 VAC, 50/60 Hz
• Power Consumption≤ 500 W
• Standby Consumption≤ 0.5 W

Working Environment

• Working Temperature0℃ to 40℃ (32℉ to 104℉)
• Working Humidity10% to 90% RH
• Storage Temperature-20℃ to 60℃ (-4℉ to 140℉)
• Storage Humidity10% to 80% RH

General

• Casing MaterialSECC
• VESA700 mm × 400 mm
• Product Dimensions (W × H × D)1953.05 mm × 1184.84 mm × 87.16 mm (76.89″ × 46.65″ × 3.43″)
• Package Dimensions (W × H × D)2187 mm × 1365 mm × 274 mm (86.10″ × 53.74″ × 10.79″)
• Net Weight67.50 ± 0.5 Kg (148.81 + 1.1 lb)
• Gross Weight88.70 ± 0.5 Kg (195.55 + 1.1 lb)
• Packing ListAC power cable, multilingual quick start guide, touch pen × 2, remote control, screws M8 × 20 × 4
